High Quality SS Round Bar 201 304 310 316 316L BA 2B Stainless Steel for Construction
Stainless steel round

High Quality SS Round Bar 201 304 310 316 316L BA 2B Stainless Steel for Construction

Standard: ASTM A276 ASTM A564

Grade: 304 316 321 904l 630

Surface: Black Bright Grinding

Diameter: 1mm to 500mm

    Overview

    As a widely used steel, stainless steel bright bar has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; it has good hot processing properties such as stamping and bending, and no heat treatment hardening phenomenon (non-magnetic, convenient use temperature -196℃~800℃).

    304 stainless steel is an austenitic stainless steel alloy, which is widely used in various applications due to its excellent corrosion resistance, good mechanical properties and high temperature resistance. 304 stainless steel round bar is a common product made of this alloy.

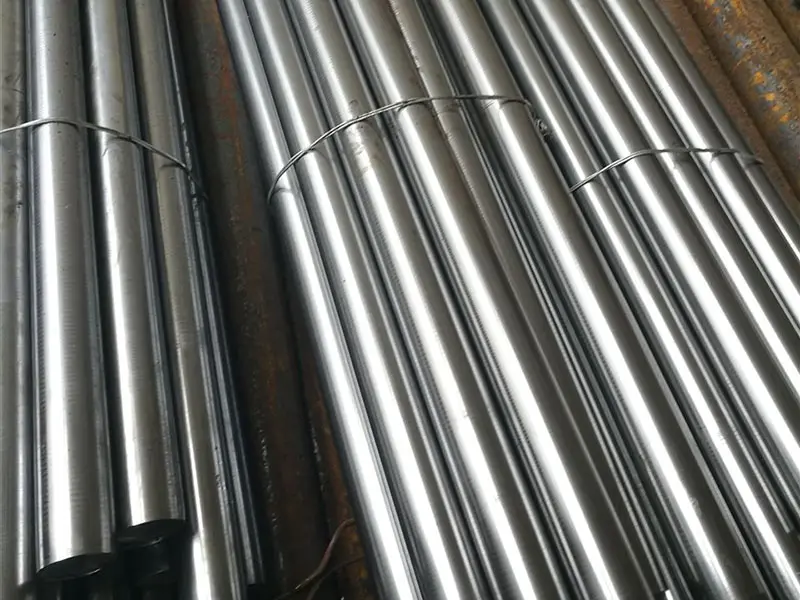

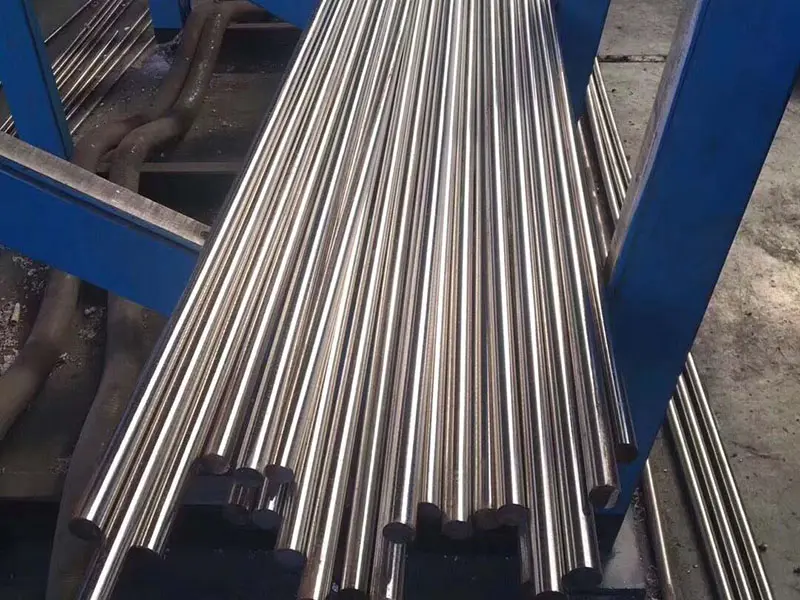

    High Quality SS round Bar 1High Quality SS round Bar 2

    Features

    ● Corrosion resistance: 304 stainless steel round bar has excellent corrosion and oxidation resistance in various environments, including chemical, marine and industrial atmospheres.

    ● High strength: 304 stainless steel round bar has high strength and toughness, suitable for occasions requiring high strength and durability.

    ● Easy to process: 304 stainless steel round bar can be easily processed using conventional methods and is suitable for various manufacturing processes.

    ● Good welding and forming properties: 304 stainless steel round bar has good welding and forming properties, is easy to process, and is suitable for a wide range of uses.

    ● High temperature resistance: 304 stainless steel round bars can withstand temperatures up to 870°C (1600°F) without losing their properties, making them ideal for high temperature applications.

    ● Hygienic: 304 stainless steel round bars are hygienic and easy to clean, suitable for the food and beverage industry, medical equipment and other applications where cleanliness is critical.

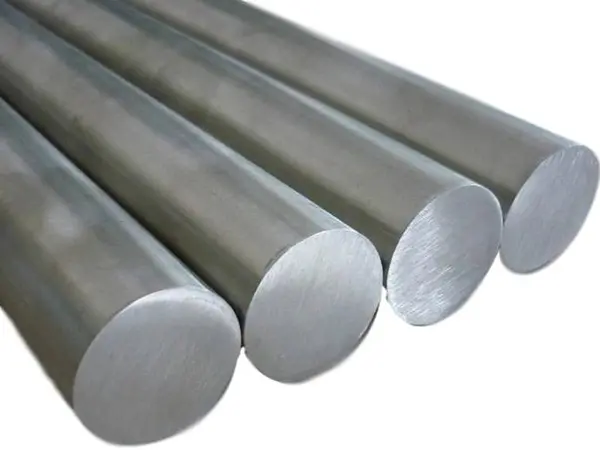

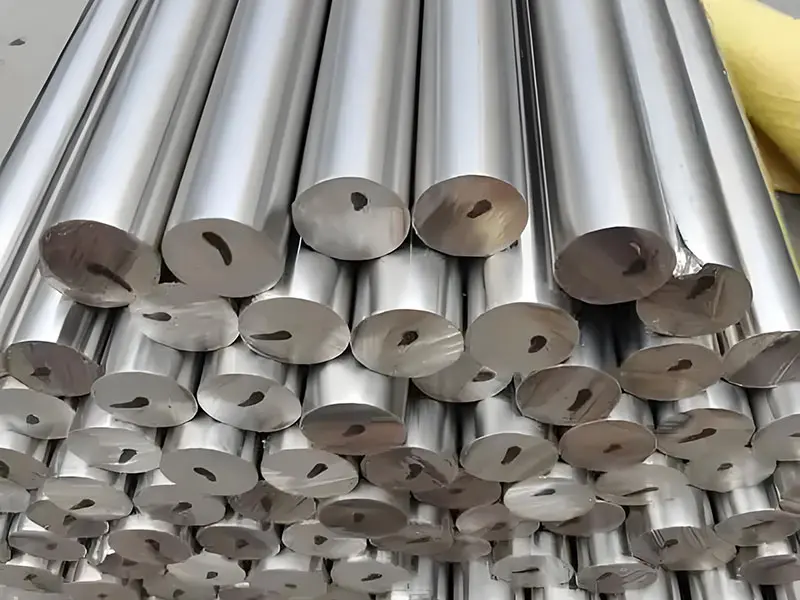

    High Quality SS round Bar 3Stainless steel round 3

    Application range of stainless steel round bars

    Uses of stainless steel round bars: household goods (category 1 and 2 tableware, cabinets, indoor pipelines, water heaters, boilers, bathtubs), automotive accessories (windshield wipers, mufflers, molded products), medical equipment, building materials, chemicals, food industry, agriculture, ship parts.

    Calculation formula for stainless steel round bars

    Diameter (mm) × diameter (mm) × 0.00623 = kg/m

    (applicable to 301 303 304 316 316L 321)

    For example: Φ50 50×50×0.00623=15.575Kg/m

    Specification parameters

    ASTM A479 SS Round Bar Chemical Composition

    ASTM
    Grade
    Carbon Manganese Silicon Sulfur Phospherous Chromium Nickel Molybdenum Other
    304 0.08
    max
    2.00 max 0.75
    max
    0.030
    max
    0.045 max 18.0-20.0 8.0
    11.0
    - -
    316 0.08
    max
    2.00 max 0.75
    max
    0.030
    max
    0.045 max 16.0-18.0 10.0
    14.0
    2.03.0 -
    317L 0.035
    max
    2.00 max 0.75
    max
    0.030
    max
    0.045 max 18.0-20.0 11.0
    14.0
    3.0 4.0 -
    310S 0.08
    max
    2.00 max 1.5
    max
    0.030
    max
    0.045 max 24.0-26.0 19.0
    22.0
    3.0 4.0 -
    347 H 0.04
    0.10
    2.00 max 0.75
    max
    0.030
    max
    0.045 max 17.0-19.0 9.0
    13.0
    - 10C(Cb+T
    <1.10%
    321 0.08 2.00 max 0.75
    max
    0.030
    max
    0.045 max 17.0-20.0 9.0
    12.0
    - 5C 0.70%


    Standard Stainless Steel Rod Sizes

    Type SIZES in milimeter SIZES in inches Tolerance
    Peeled and Polished 40.00-150.00 1.50-6.00 h11,h11-DIN 1013
    Cold Drawn and Polish 3.00 to 75.00 1/8 to3.00 h8 to h11
    Cold Drawn and Ground 10.00 to 75.00 5/6 to 2.50 h8 to h11
    Peeled nd Ground 20.00-50.00 3/4-2.00 h9 to h11
